CONDUCTIVITY METER

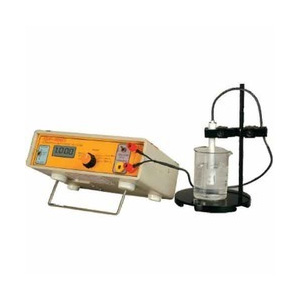

Digital Conductivity Meter offered come with measurement unit comprising MHO in range of 01μΩ to 200 mΩ in six ranges including 200 mΩ, 20 mΩ, 2 mΩ, 200 μΩ, 20 μΩ, 2 μΩ. Further, these feature accuracy of ± 1% ± last 2 digits and come in ABS body finish so as to provide for longer service life standards. With instant warming period, these deliver standard conductance of 1.000 mΩ with stirrer speed of 200 RPM (fixed).

Features :

• Unit of meas. : MHO
• Range. : 01μΩ to 200 mΩ in Six ranges
• Six ranges : 200 mΩ, 20 mΩ, 2 mΩ, 200 μΩ, 20 μΩ, 2 μΩ
• Accuracy : ± 1% ± last 2 digits
• Power required : 230 V AC ± 10%, 50 Hz, 5 VA or 9 V battery
• Weight : 1 Kg. (Approx.)
• Body : ABS
• Warming Period : Instant
• Dimension : - 80 mm (H) 235 mm (W) 150 mm (L)
• Standard conductance : Conductance of 1.000 mΩ
• Electrode : Cell K = 1 - PVC sleeved
• Stirrer speed : 200 RPM Fixed

Accessories : Stand set, Screwdriver and Dust proof cover

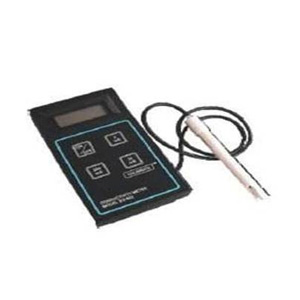

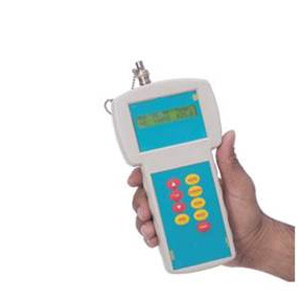

Digital Pocket Conductivity Meter offered are made available with ‘Siemens’ measurement units in range from 1 μS to 200 ms in three ranges. With option of three ranges including 20 ms, 200 ms and 2 ms (2000 μS) that are selectable by switch, these feature accuracy of ± 1% ± last 2 digits. Further, these also feature standard conductance of 1.000 mΩ with accessories options including screwdriver and carry case.

Features :

• Unit of meas. : Siemens
• Range : 1 μS to 200 ms in three ranges
• Three ranges : 2 ms (2000 μS), 20 ms, 200 ms selectable by switch
• Accuracy : ± 1% ± last 2 digits
• Power required : 9 V battery
• Weight : 200 gm. (approx.)
• Dimension : 40 mm (H) x 75 mm (W) x 140 mm (L)
• Standard conductance. : Conductance of 1.000 mΩ
• Electrode : Cell K = 1 - PVC sleeved

Accessories : Screwdriver and Carry case



CR - Conductive Two-Electrodes Conductivity Sensor

• Two-electrode principle
• For measuring ranges between 0.05 µS/cm to 1 mS/cm
• Large variety of process connections
• Versions that meet pharmaceutical requirements available with certificate

CR-PVC - Conductive Two-Electrodes Conductivity Sensor

• Two-electrode principle
• Proven versions for industrial use
• Large measuring range span
• Can be used up to 55 °C

CR-GT - Conductive Two-Electrodes Conductivity Sensor

• Two-electrode principle
• Special graphite electrodes
• Cell constants K=1.0 / 3.0 / 10.0

Large variety of process connections
