Refrigerator

  Name of Equipment

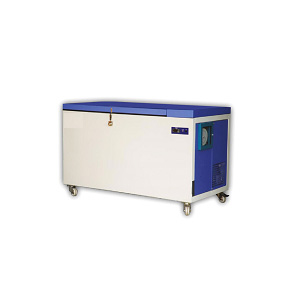

Micro Controller based Ice lined Refrigerator

    Control System

Micro Controller based temperature indicator cum controller with digital display and PT 100 sensor.

    Alarm

Audio Visual Alarm if the temperature Deviates from the preset temperature

    Refrigeration System

Hermetically Sealed CFC Free Emerson Compressor with R-134a refrigerant

    Temperature Holding Time

24 Hours from 2°C to 10°C (with 15 Kg of load)

    Construction

Triple walled construction

    Inner Chamber

Made of Stainless Steel SS-304, I mm thick ,

    Middle Chamber

Made of GI Sheet

    Outer Chamber

Made of Powder Coated CRCA sheet, 18 SWG (1.2 mm)

    Insulation

75 mm thick Polyurethane Foam (PUF) insulation between the middle and outer chamber

    Lock

Self contained lock and key to prevent unauthorized access

    Hot Line

Anti-moisture entry using hot line at the mouth of the cabinet

    Other

Castor wheels, MCB, Adjustable Tray Height arrangement. Heavy-duty latch with lock & key

    Power

Works on 230 V AC s
ingle phase 50Hz.

    Safety Features

180 Sec. compressor ‘ON’ delay timer to safe guard the compressor.
