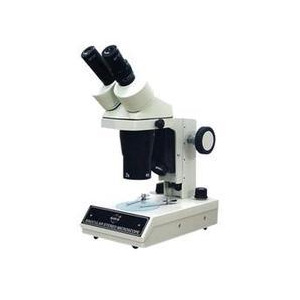

STEREO MICROSCOPE

Stereo Microscope offered is well recognized in the market for its binocular head that comes inclined at 45-deg and rotated through 360-deg with option of adjustable inter-pupillary distance. With focusing mechanism through rack and pinion mechanism with provision of adjustable tension collar, it also comes with standard magnification of 20X & 40X with flat field as well as integral illuminator option through 2 lamps that come fitted so as to provide transmitted and incident illumination.

Specifications:

Observation Head
Binocular head inclined at 45-deg, rotated through 360-deg with adjustable inter-pupillary distance.

Focus-sing
By Rack and Pinion mechanism with adjustable tension collar.

Magnification
Standard magnification 20X & 40X with flat field.

Illumination
With integral illuminator, 2 lamps are fitted to provide both transmitted and incident illumination.

Objectives
2 sets of objectives 2 X and 4 X, selected by rotating nose piece through 90-degrees.

Eyepieces

Standard extra wide field eyepieces WF-10 X is provided.

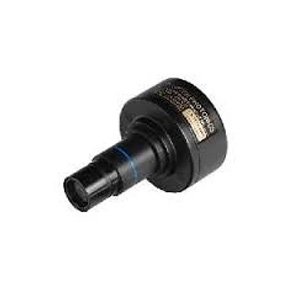

Camera for Micrscope attatched with all kind of microscope -
1 2 mega pixel camera
2 5 mega pixel camera
3 8 mega pixel camera

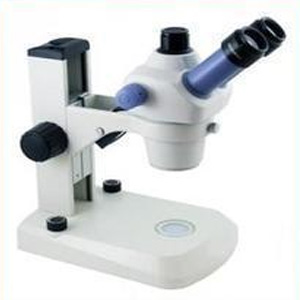

By keeping track of the modern market developments, we are offering a wide collection of Zoom Stereo Microscope. The offered microscope is robustly constructed using best grade raw material and latest techniques. To meet the diverse demands of our esteemed customers, these offered products are availed in various specifications. Furthermore, customers can avail the offered products from us at most reasonable rates.

Features:

• Strongly built
• Impeccable performance
• Long operational life

Specifications:

• With high quality optical components, providing sharp and striking contrast image and ensure flat image at big depth of field
• Ease the tiredness with ergonomic design
• With Halogen light for both incident and transmitted illumination, providing even illumination
• It is an ideal instrument for industry assembling, inspection and teaching field
• Magnification; 0.65x - 5.5x
• The object is projected on the LCD screen of 8"
• Stand : Dual light stand
• Eye Tube : Digital 8" LCD screen in-built for direct viewing
• Magnification : 0.7x - 4.5x
• Total Magnification : 7x - 45x (10x Eyepiece)
• Zoom Ratio : 1 : 6.4
• Working distance : 110 mm
• Focus : Focusing knobs on stand
• Illumination : Incident light Halogen 12V-20W, sub-stage transmitted Light Halogen 12V-10W,
• with illumination adjustable

Electrical : Universal power supply (110V-240V), ISO-CE
