Freezers
Ice Lined Freezer(-20°C to -10°C)
Name of Equipment |

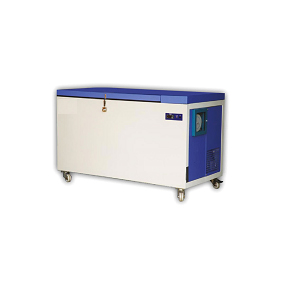

Micro Controller based Ice lined Freezer |
|
Control System |
Micro Controller based temperature indicator cum controller with digital display and PT 100 sensor. |
|
Alarm |
Audio Visual Alarm if the temperature Deviates from the preset temperature |
|
Refrigeration System |
Hermetically Sealed CFC Free Emerson Compressor with R-134a refrigerant |
|
Temperature Holding Time |
24 Hours from -20°C to -10°C(with 15 Kg of load) |
|
Construction |
Triple walled construction |
|
Inner Chamber |
Made of Stainless Steel SS-304, I mm thick , |
|
Middle Chamber |
Made of GI Sheet |
|
Outer Chamber |
Made of Powder Coated CRCA sheet, 18 SWG (1.2 mm) |
|
Insulation |
75 mm thick Polyurethane Foam (PUF) insulation between the middle and outer chamber |
|
Lock |
Self contained lock and key to prevent unauthorized access |
|
Hot Line |
Anti-moisture entry using hot line at the mouth of the cabinet |
|
Other |
Castor wheels, MCB, Adjustable Tray Height arrangement. Heavy-duty latch with lock & key |
|
Power |
Works on 230 V AC single phase 50Hz. |
|
Safety Features |
180 Sec. compressor ‘ON’ delay timer to safe guard the compressor. |
|
