Storage

    Name of Equipment

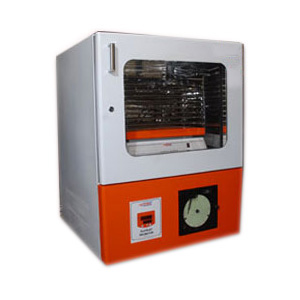

Micro Controller Based platelet Incubator

    Control System

Micro controller based temperature indicator cum controller with digital display and PT 100 sensor.

    Alarm

Audio Visual Alarm if the temperature deviates from the preset Temperature

    Refrigeration System

Hermetically Sealed CFC Free Emerson Compressor with R-134a refrigerant

    Air Circulation

Motor and blower arrangement to have uniformity of temperature under loaded condition.

    Heating System

U shaped S.S. Nichrome wire air heaters.

    Insulation

3” Thick CFC free PUF Insulation

    Inner chamber

Stainless steel 304, 0.8 mm thick

    Outer chamber

Mild steel powder coated, 1.0 mm thick

    Lighting

Interior illumination for working area.

    Observation Door

See through unbreakable acrylic door

    Other

Castor wheels, MCB, with lock & key

    Power

Works on 230 V AC single phase 50Hz.

    Temperature Recorder

7 days circular chart

    Safety feature

1. Additional safety thermostat to cut off the equipment in case of overshoot of temperature.
2. 180 Sec. compressor ‘ON’ delay timer to safe guard the compressor.
3. Password protected keypad lock
